| Pixel pitch | 0.78 | 0.93 | 1.25 | 1.56 | 1.875 | 2.5 | |||||||
| LED Type | COB | COB | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515 | |||||||
| Physical density(Dot/sqm) | 1638400 | 1137778 | 640000 | 409600 | 284444 | 160000 | |||||||
| Module resolution | 192X216 | 160X180 | 240X135 | 192X108 | 160X90 | 60X135 | |||||||
| Module size(mm) | 150X168.75 | 150X168.75 | 300X168.75 | 300X168.75 | 300X168.75 | 150x337.5 | |||||||

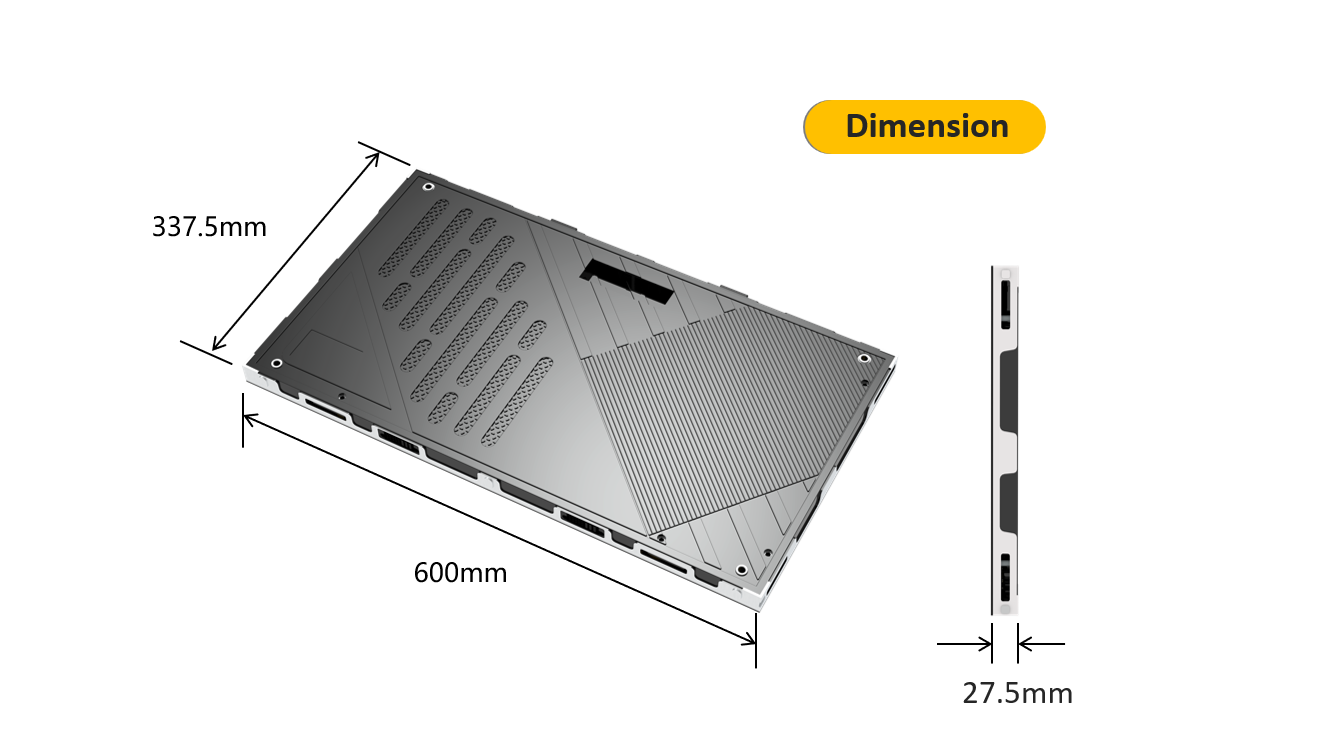

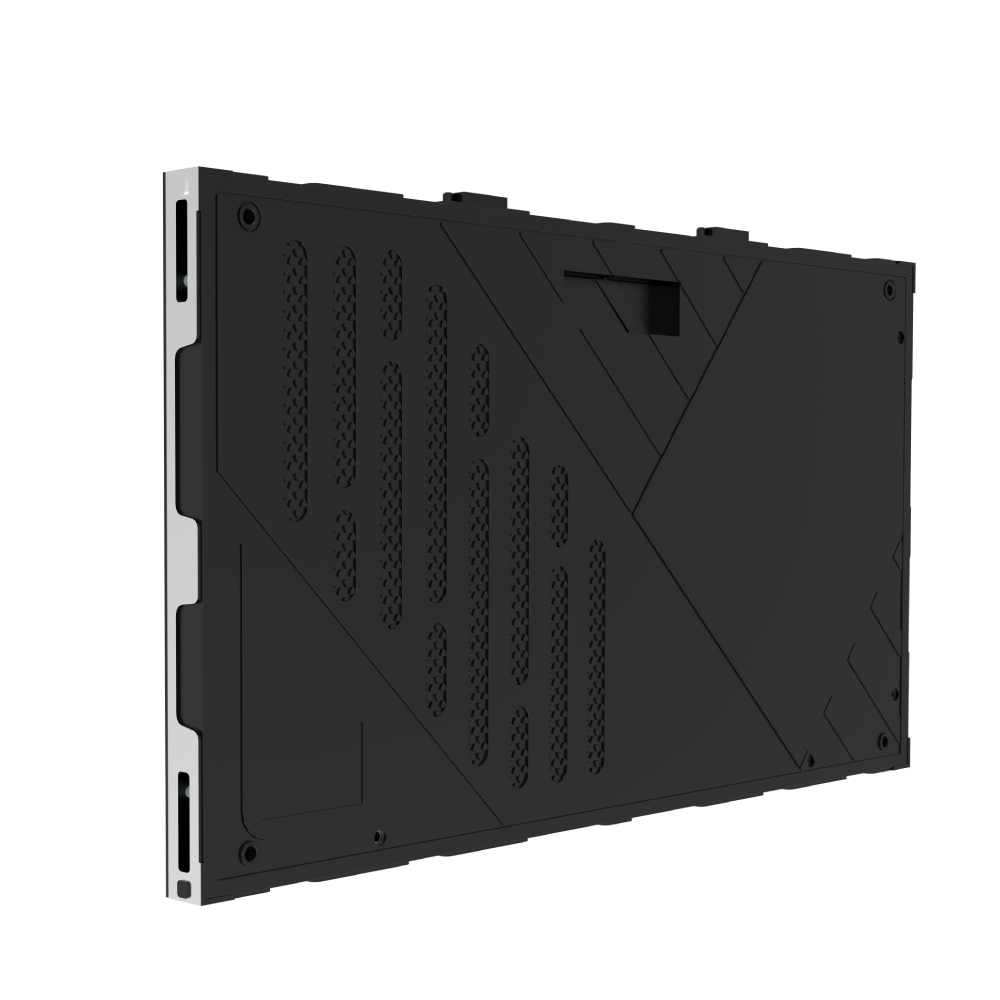

| Panel Dimension (WXHXD/mm) | 600 x 337.5 x 27.5 | ||||||||||||
| Panel Resolution | 768X432 | 640X360 | 480X270 | 384X216 | 320X180 | 240X135 | |||||||
| Module QTY(WXH) | 4X2 | 4X2 | 2X2 | 2X2 | 2X2 | 4X1 | |||||||

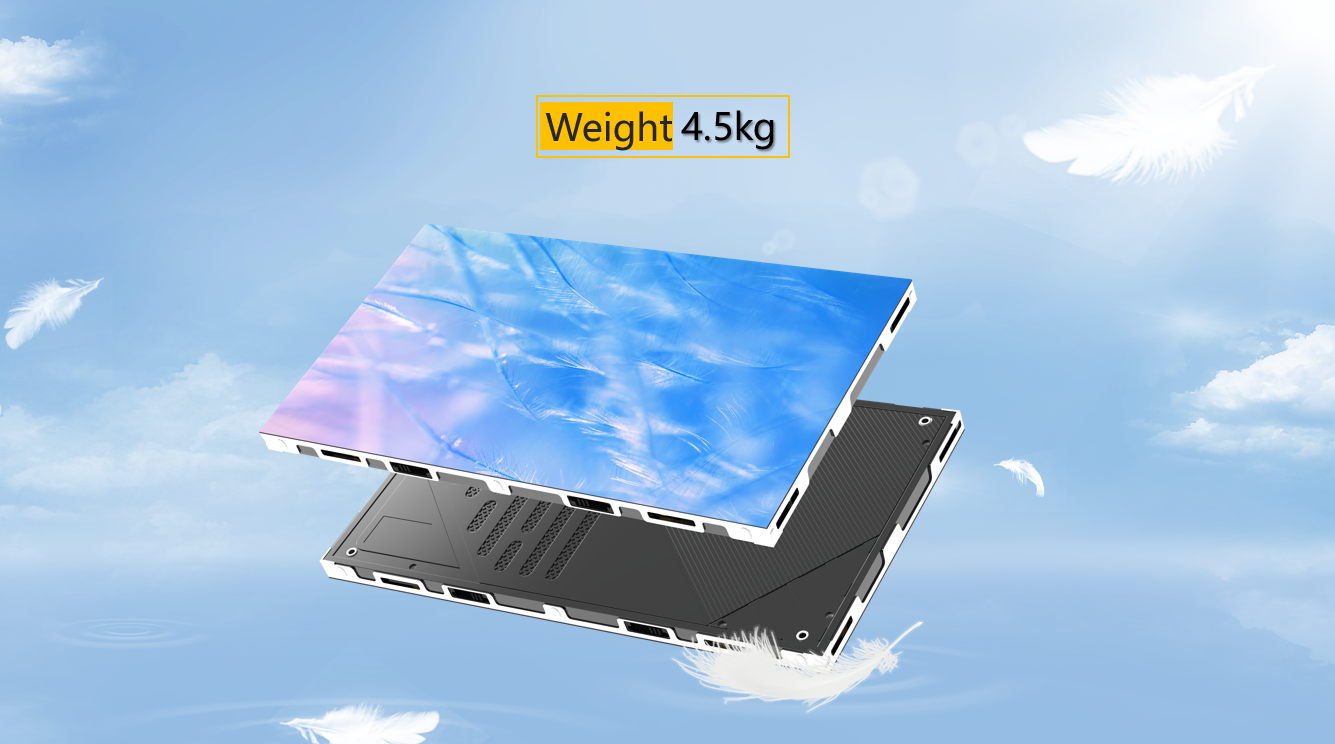

| Panel weight(kg) | 4.5 | ||||||||||||

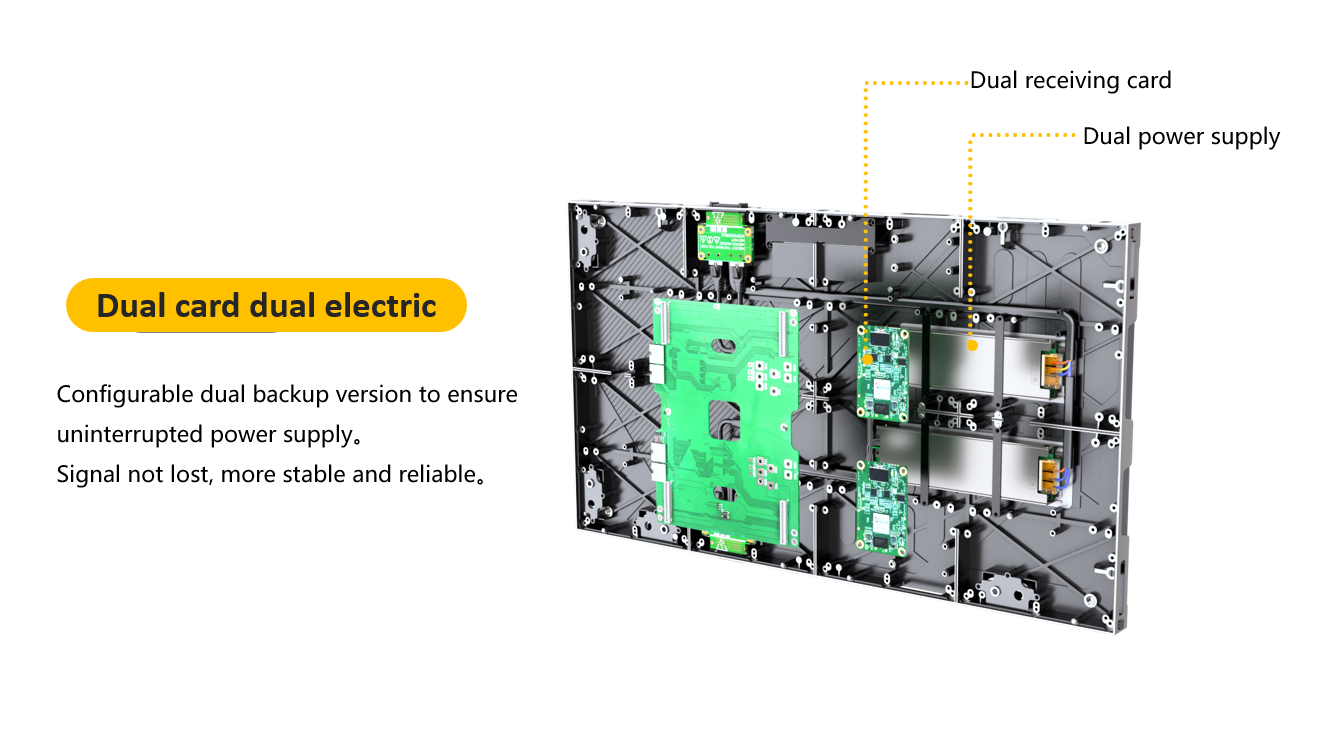

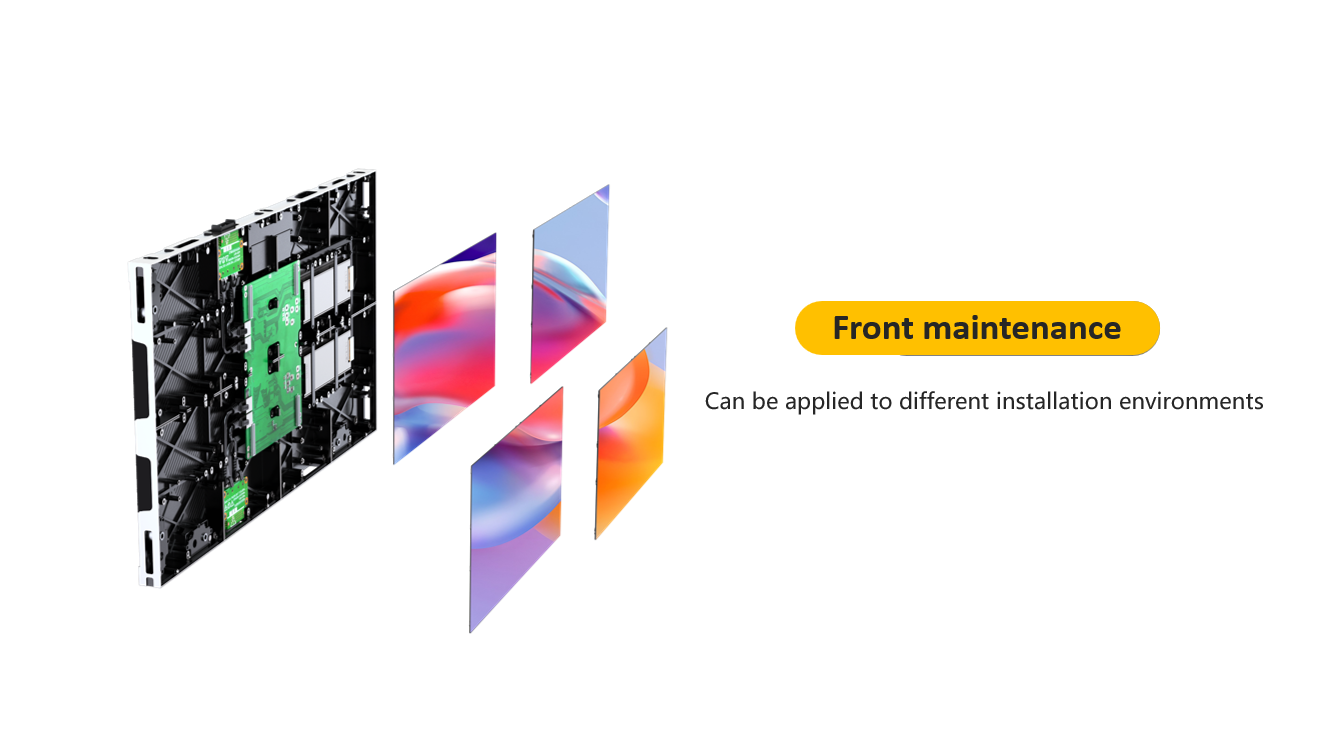

| Maintenance Mode | Front maintenance | ||||||||||||
| Cabinet Material | Die-casting aluminum | ||||||||||||
| Brightness Carlibration | Have | ||||||||||||
| Brightness(Nits) | ≥500 | ≥500 | ≥500 | ≥600 | ≥600 | ≥600 | |||||||
| Color temperature(K) | 1000-18500 Optional | ||||||||||||
| Viewing angle(V/H) | 170°/170° | ||||||||||||
| Brightness/Color uniformity | ≥99.8% | ||||||||||||
| Contrast ratio | 10000:1 | ||||||||||||
| Frame frequency | 50/60 | ||||||||||||
| Drive mode | 1/64 scan | 1/60 scan | 1/45 scan | 1/48 scan | 1/45 scan | 1/30 scan | |||||||
| Grey level | 16bit | ||||||||||||
| Refresh rate(Hz) | 3840 | ||||||||||||
| Max.power consumption(W/sqm) | 350 | ||||||||||||
| Avg.power consumption(W/sqm) | 100 | ||||||||||||
| Protection level | IP31 | ||||||||||||
| Power input | AC90-264V,47-63Hz | ||||||||||||
| Working temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||||||||||
| Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% | ||||||||||||
