| P2.976 | P3.91 | P4.81 | P6.25 | 7.81 | 10.42 | ||||||||
| SMD Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | |||||||
| Physical Density(dots/㎡) | 112896 | 65536 | 43264 | 25600 | 16384 | 9216 | |||||||
| Module Resolution | 168X84 | 128X64 | 104X52 | 80X40 | 64X32 | 48X24 | |||||||
| Module size(W xH/mm) | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 | |||||||

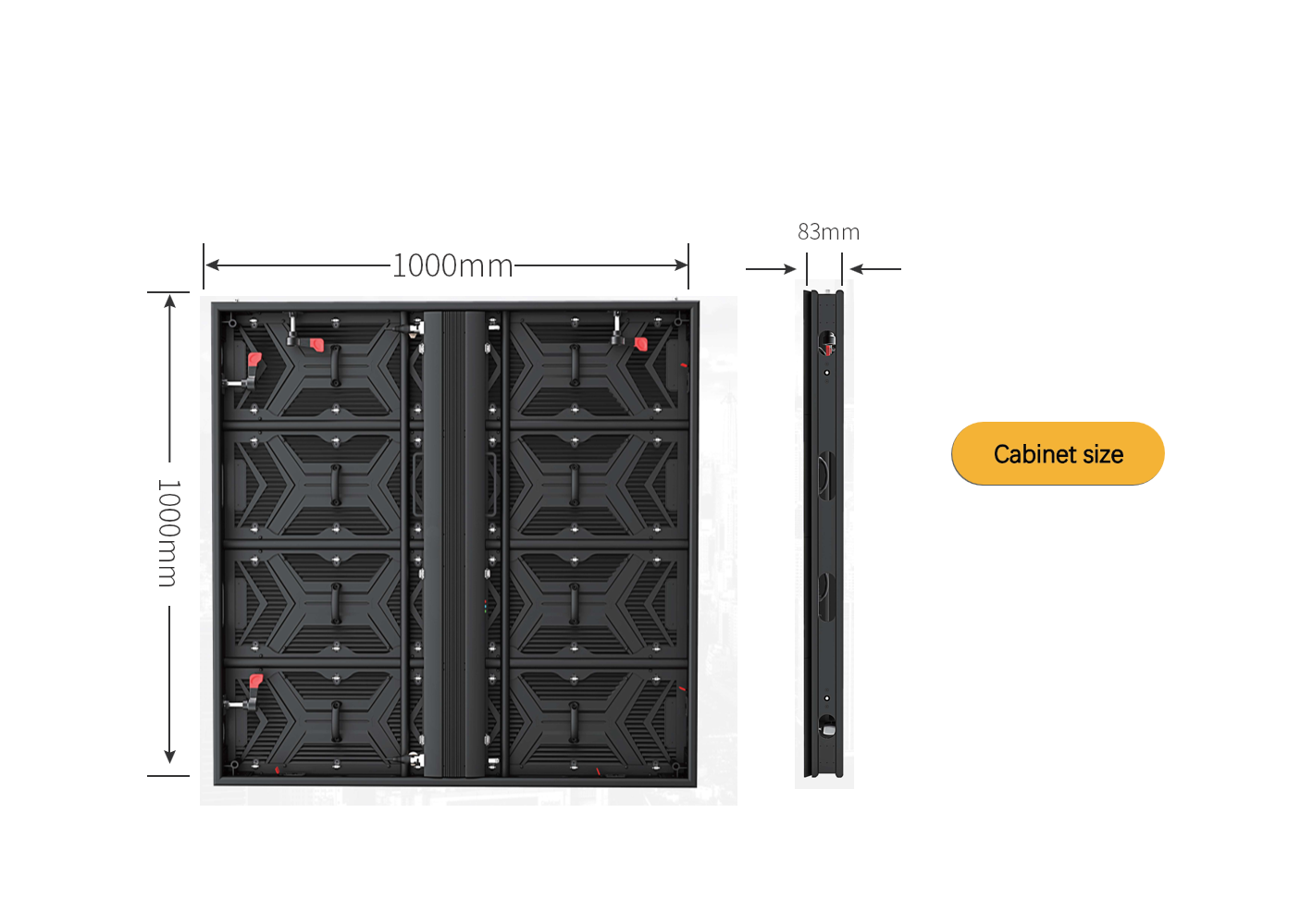

| Cabinet Size(mm) | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 | |||||||
| Panel Resolution | 336X336 | 256X256 | 208X208 | 160X160 | 128X128 | 96X96 | |||||||
| Module quantity(W xH) | 2X4 | 2X4 | 2X4 | 2X4 | 2X4 | 2X4 | |||||||

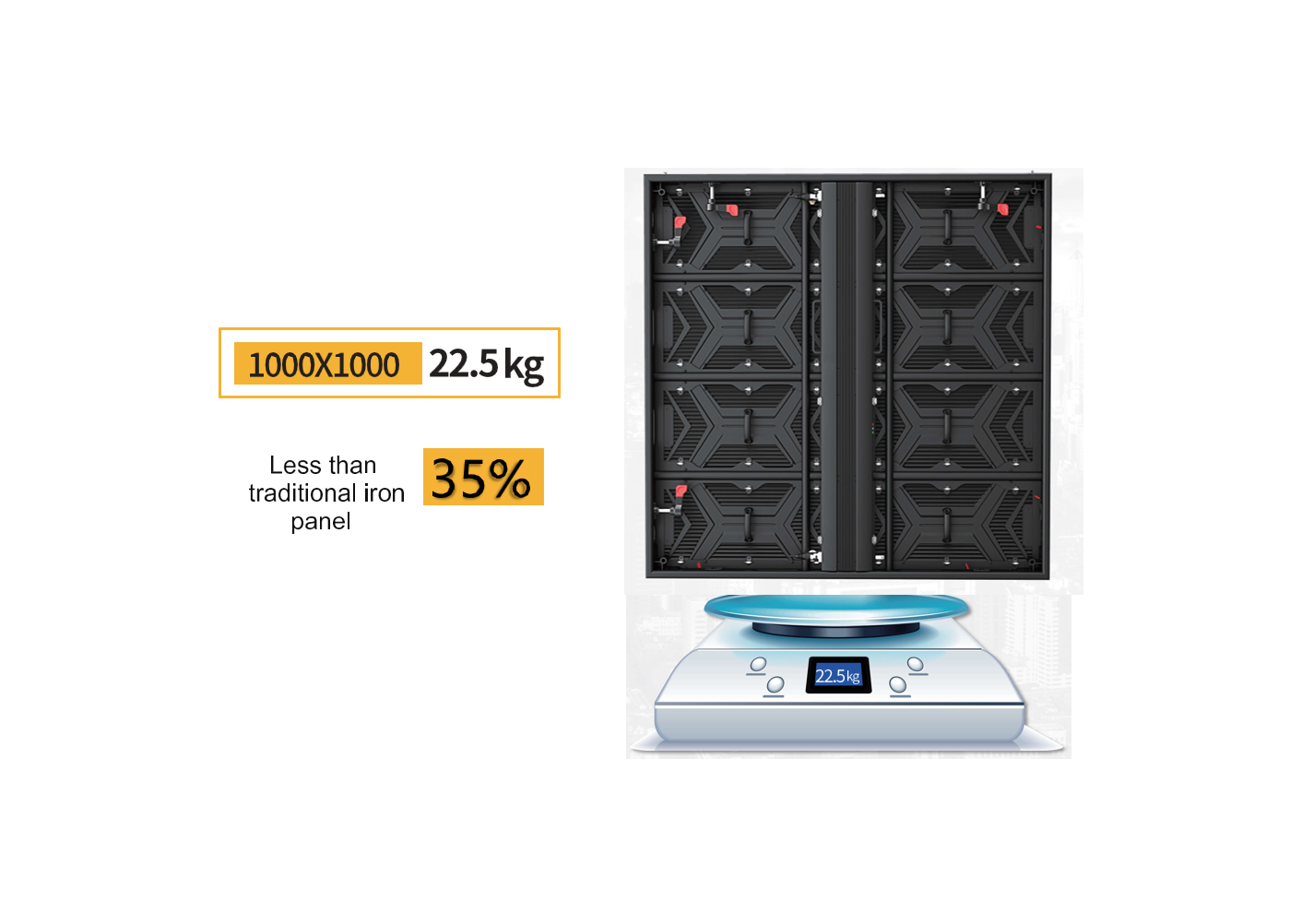

| Cabinet Weight(kg/㎡) | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | |||||||

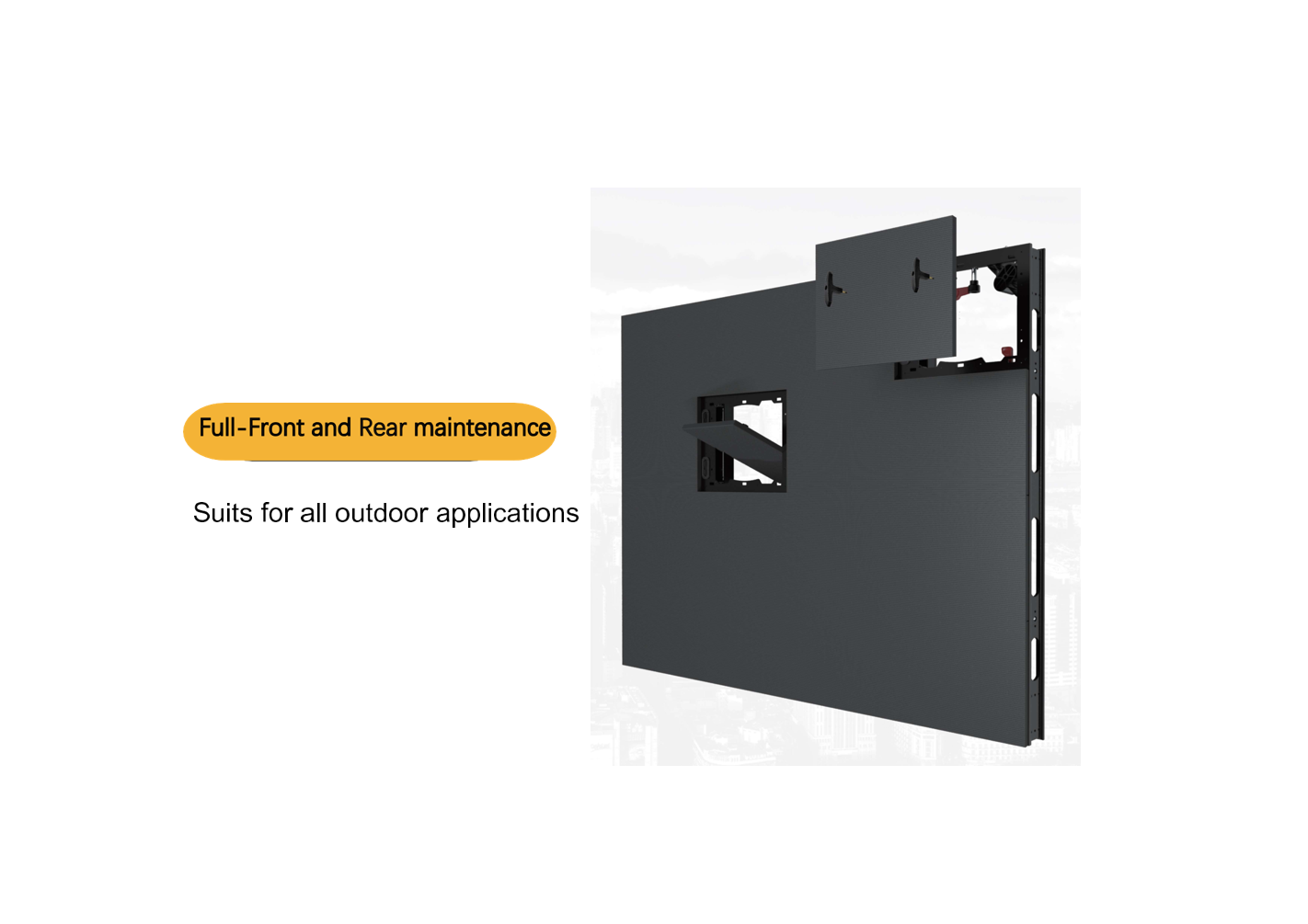

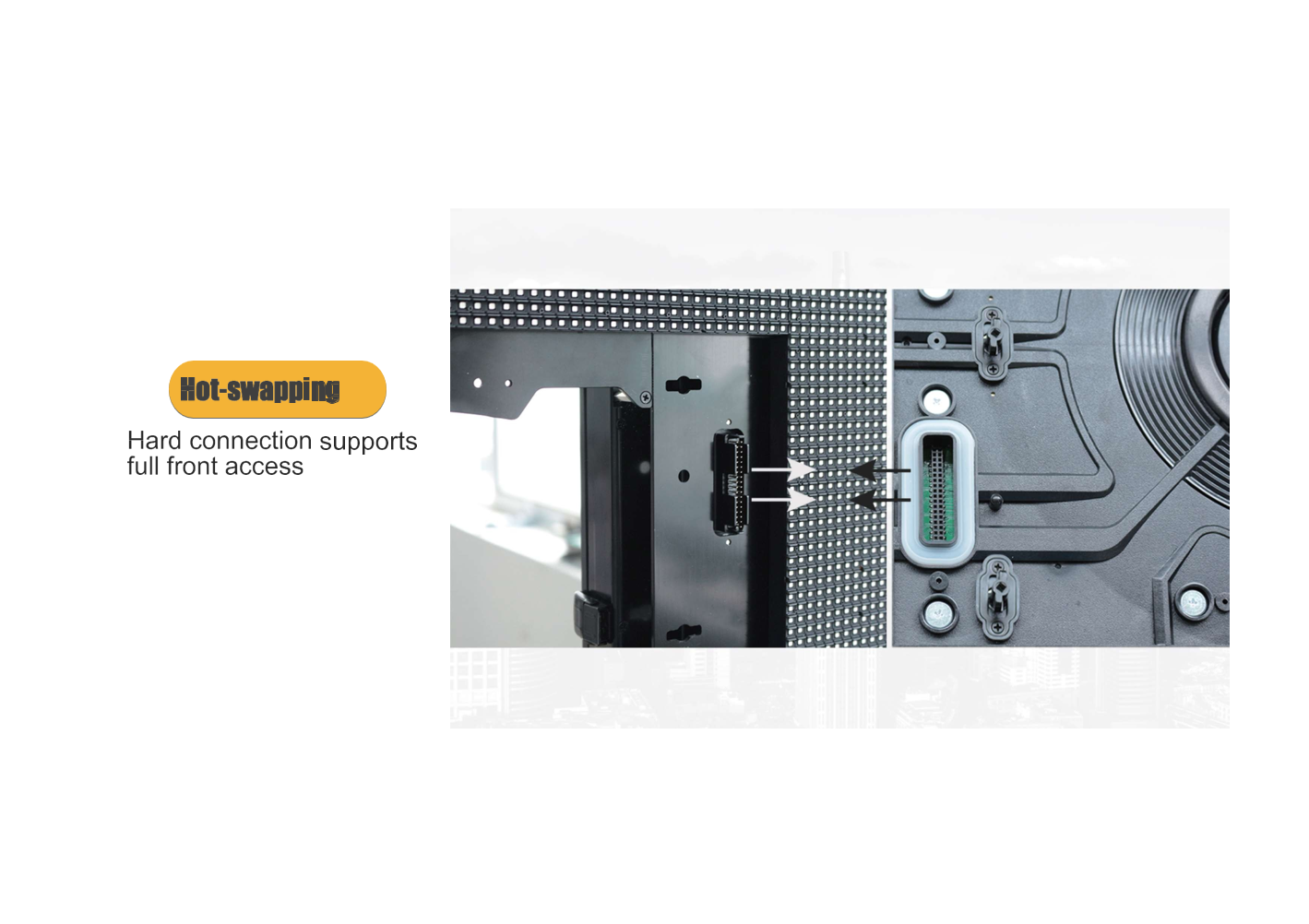

| Maintenance Mode | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear | |||||||

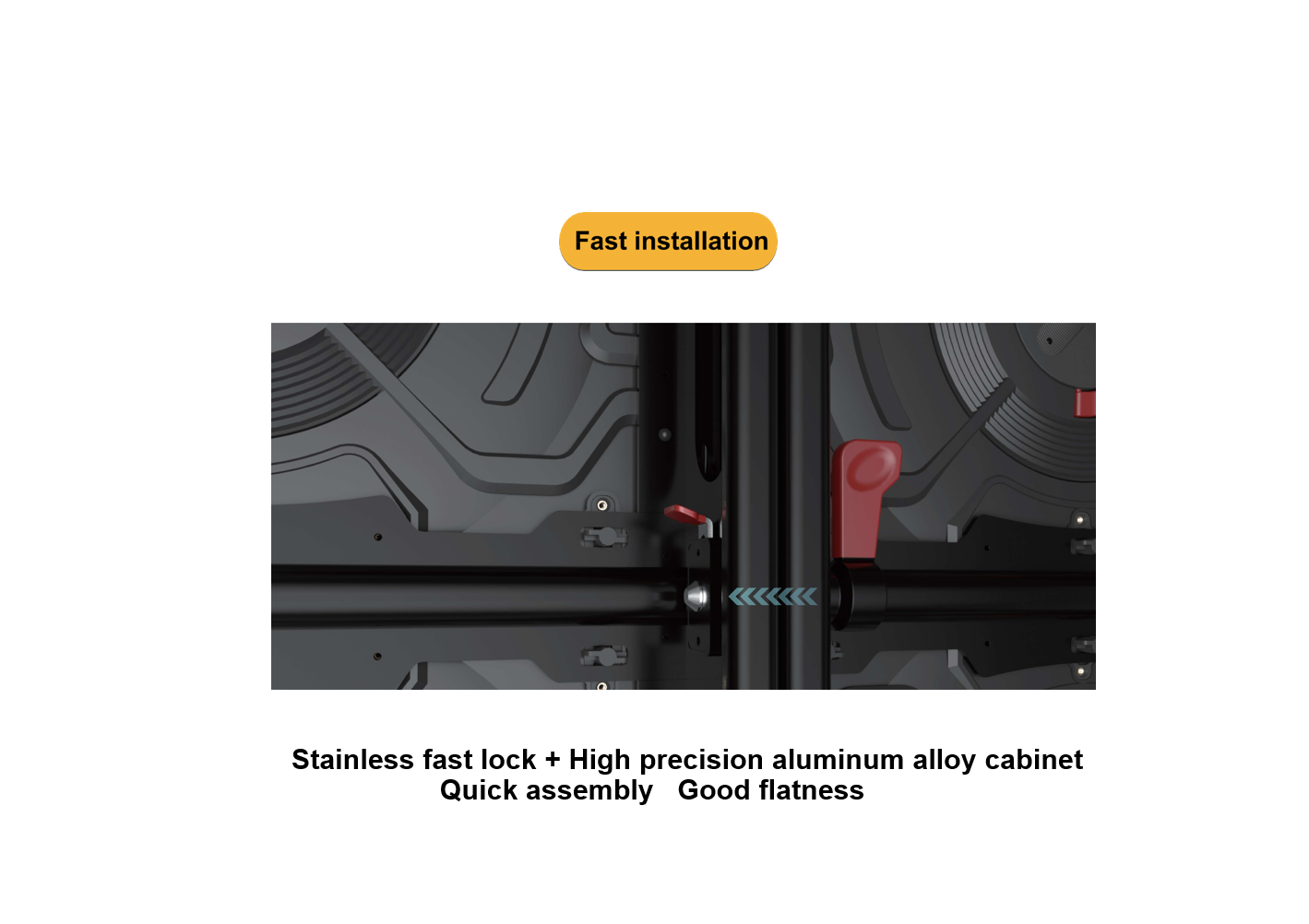

| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |||||||
| Brightness(Nits) | ≥4500 | 6000 | 6000 | 6000 | 6000 | 6000 | |||||||
| Color temperature(K) | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | 1000-18500 Adjustable | |||||||
| Viewing Angle(H/V) | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° | 140°/160° | |||||||
| Best viewing distrance | 3-100m | 4-100m | 5-100m | 6-150m | 8-150m | 10-200m | |||||||
| Contrast Ratio | 6000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | |||||||
| Frame-changing Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |||||||
| Drving Mode | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/8 Scan | 1/4 Scan | 1/2 Scan | |||||||
| Grey Level | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | |||||||
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | |||||||
| Max power consumption(W/㎡) | 810 | 780 | 850 | 800 | 780 | 780 | |||||||
| Avg power consumption(W/㎡) | 270 | 260 | 283 | 270 | 260 | 260 | |||||||

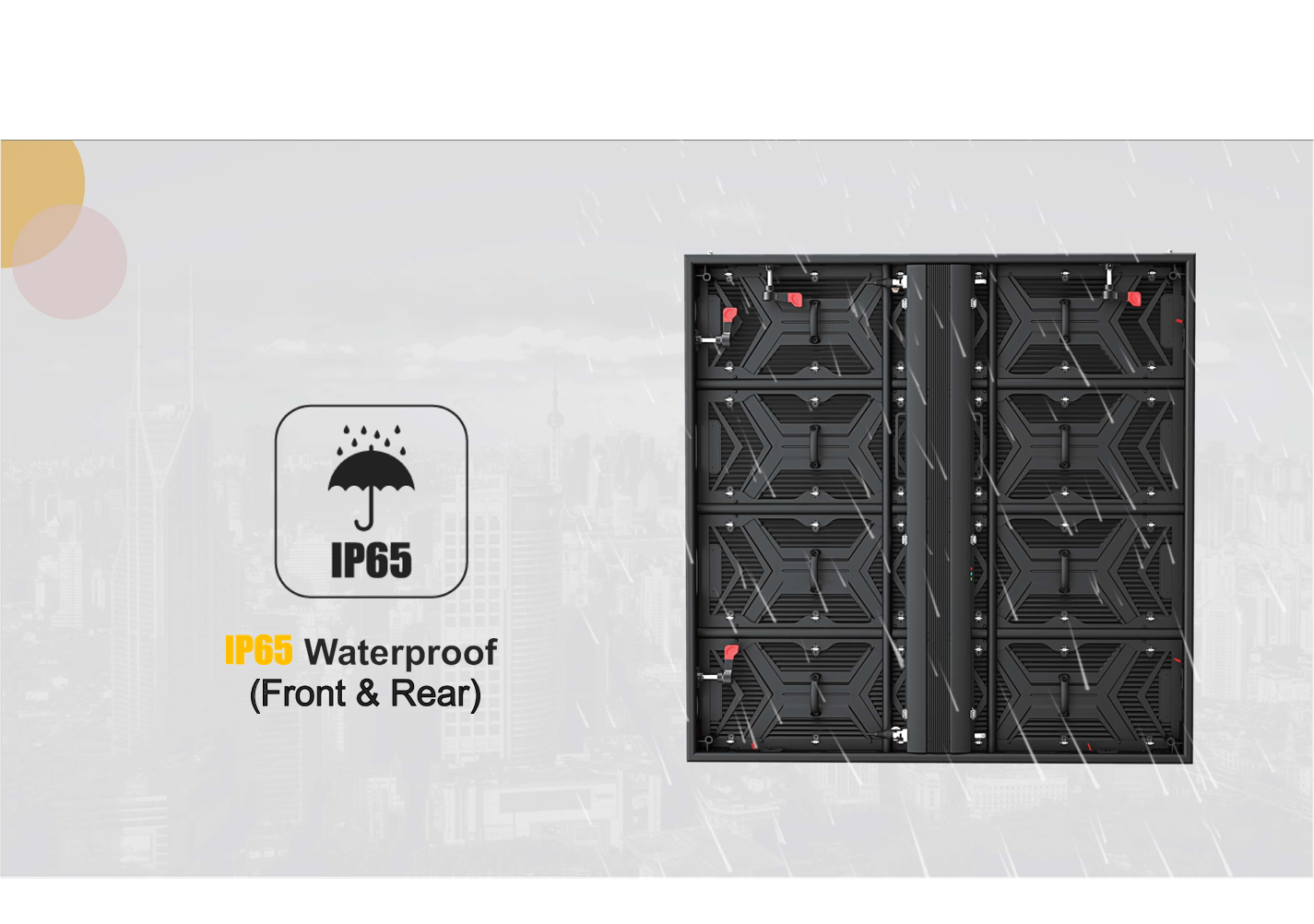

| Protection level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | |||||||
| Power supply requirements | AC90-264V,47-63Hz | ||||||||||||
| Working Temp/Humidity(C/RH) | -20~60℃/10%~85% | ||||||||||||
| Storage Temp/Humidity(℃/RH) | -20~60℃/10%~85% | ||||||||||||
